In Stock Trailers Enclosed Car Haulers 8.5×24 ATC Raven Aluminum Frame Car Hauler Trailer – Premium Escape Door – CHOOSE YOUR COLOR!

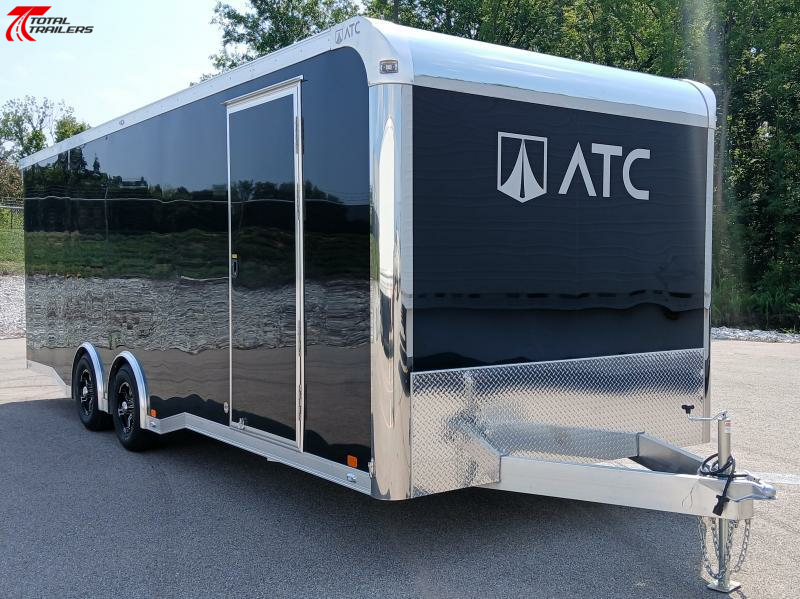

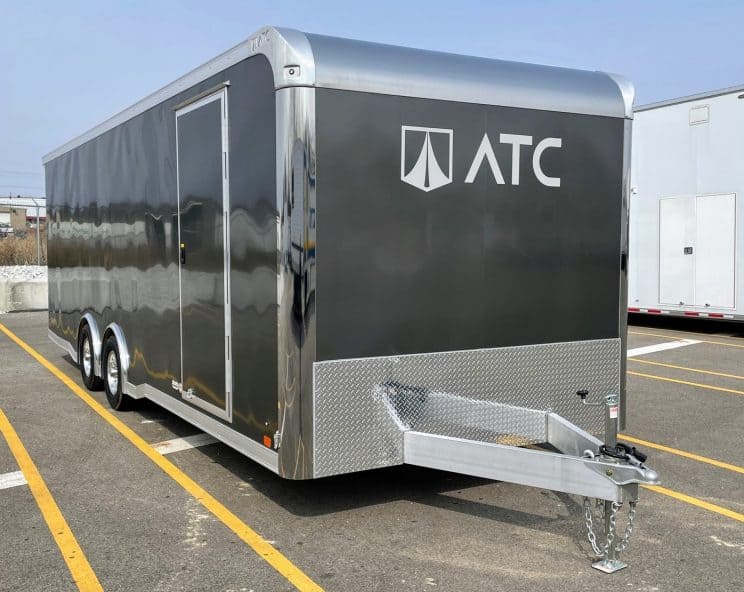

8.5×24 ATC Raven Aluminum Frame Car Hauler Trailer – Premium Escape Door – CHOOSE YOUR COLOR!

$24,995.00

Contact Us
SKU: 225722 Category:
Request More Information

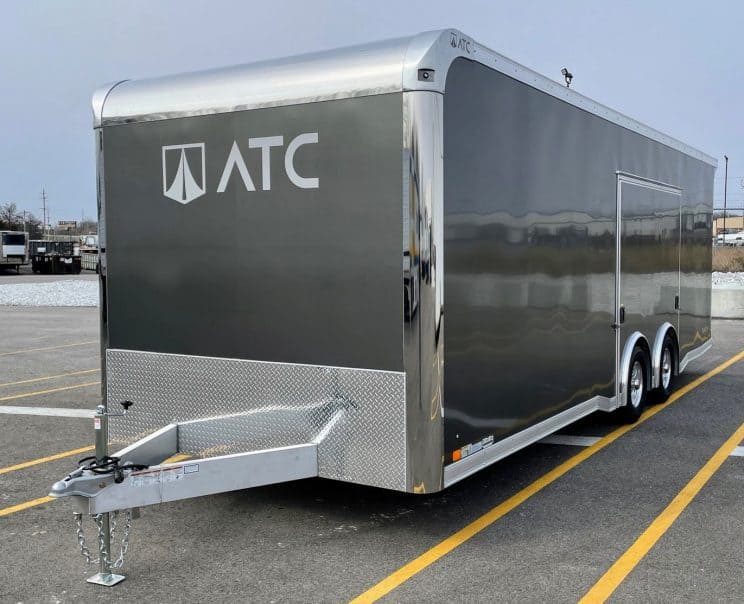

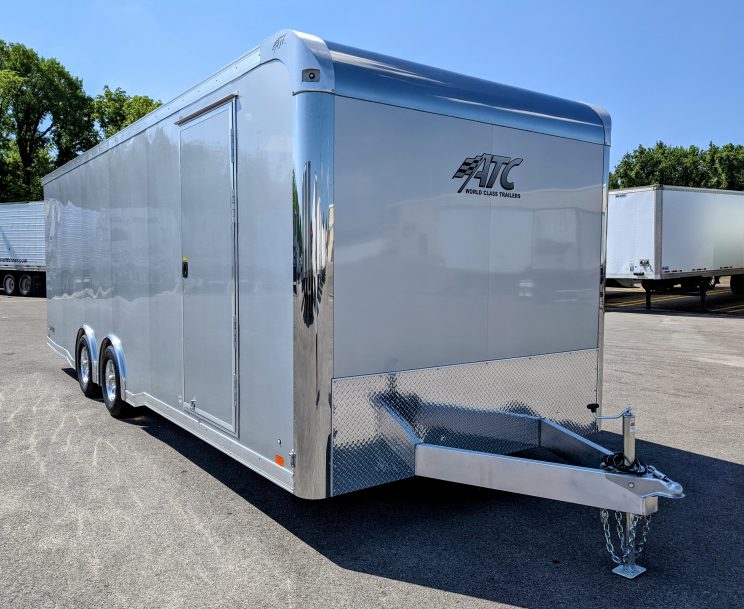

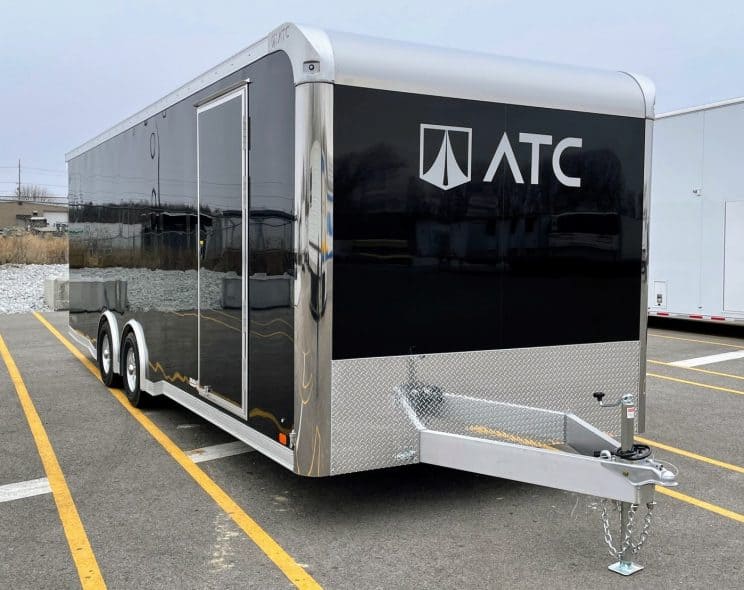

If you’re looking for an economy-focused all aluminum frame trailer, stop looking because you just found it! The ATC Raven is an entirely aluminum frame that rolls off the production line at only 3,135 lbs! Riding on Dexter Torsion axles with radial tires & aluminum wheels, this trailer is designed to cater to our weekend warriors with half ton and 3/4 ton pickups. With a GVWR of 9,990 lbs, you’ll be able to haul your car, move the kids to and from college, and (maybe) lend it out to friends if you aren’t already using it to haul your two 4-seater side by sides. Call us today because these trailers are available on the lot now and in your choice of White, Silver, Black, Charcoal, Victory Red or Pewter.

Overall Length

28'10" (Includes 6″ Spoiler)
Overall Width

102"
Overall Height (Top of Roof Vent)

112.75"
Interior Length

23'11"
Interior Width

97.5"
Interior Height

84"
Minimum Ground Clearance

8-1/16"
Deck Height

19-3/4"
Rear Opening Width

89-7/8"
Rear Opening Height

83-7/8"
Tongue Length to Center of Ball

56.5"
Center of Coupler to Corner Radius

78.5"
Width Between Wheel Wells

83"
Wheel Electric Brakes

4
Tire Size/Tire Load Range

225/75R15 LRD
Hitch Height to Top of Ball

19"
Hitch Ball Size

2-5/16"
AXLE

5200# - TORSION - EZ LUBE HUBS - ELECTRIC BRAKES
ALL TUBE CONSTRUCTION
COUPLER

A-FRAME- 2-5/16" - 10,000#
CROSS MEMBERS - FLOOR

16" O/C
CROSS MEMBERS - ROOF

16" O/C - 1" X 2"
CROSS MEMBERS - WALL - CS

16" O/C - 1" X 2"
CROSS MEMBERS - WALL - RS

16" O/C - 1" X 2"
FLOOR DESIGN

BEAVERTAIL
FRAME

5"
FRAME PROTECTION

SKID PLATES
JACK - TONGUE

TOP WIND - 5000# - ZINC
TIRE/WHEEL

ST225/75R15/LRE - RADIAL ON ALUMINUM - W/STAINLESS STEEL LUGNUTS
TONGUE

EXTENDED TUBE
TRUCK PLUG

7 WAY - BUMPER PULL
EXTERIOR FASTENER

SCREWLESS
EXTERIOR ALUMINUM THICKNESS

.030
FENDERETTES

AL - POLISHED
GRAVEL GUARD

ATP - 24"
ROOF

ONE PIECE - ALUMINUM
SKIRTING

PERIMETER SKIRTING W/ REVERSE BEAVERTAIL
TRIM - VERTICALS - FRONT & TOP RADIUS

STAINLESS STEEL W/ CAST CORNERS - BRUSHED
TRIM - RUB RAIL - LOWER

ALUMINUM - 4"
TRIM - RUB RAIL - UPPER

ALUMINUM - 4"
TRIM - SPOILER - REAR

COLOR MATCHED W/ 3 LED LIGHTS
TRIM - VERTICALS - REAR

COLOR MATCHED
VENT - ROOF

MANUAL - 14" - W/MAXXAIR COVER

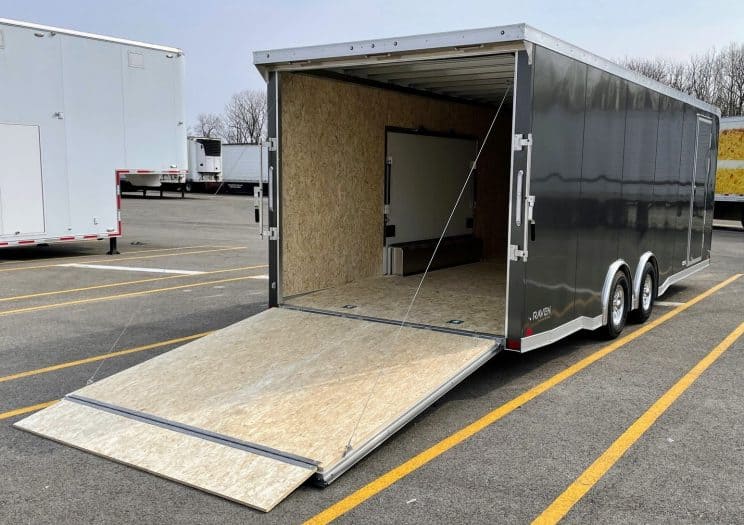

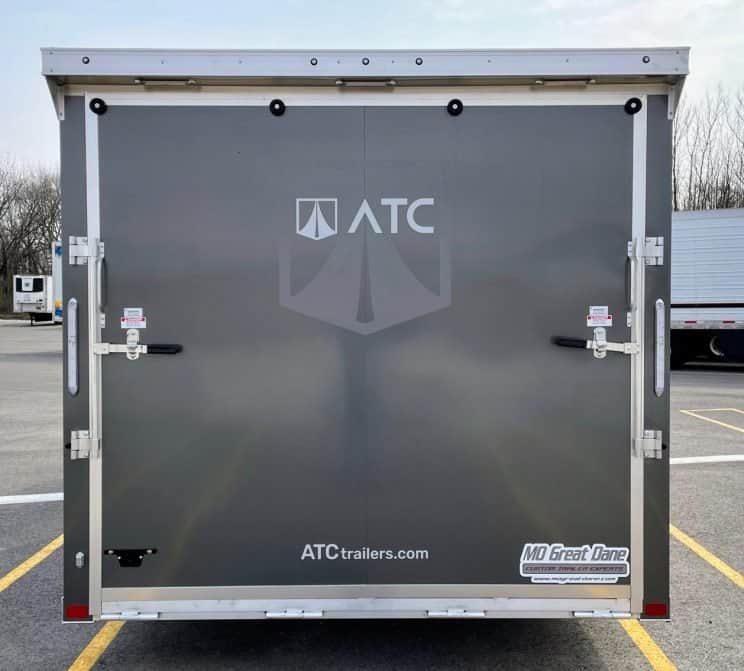

DOOR - REAR RAMP - STANDARD

2400# RATED MAX LOAD - 4000# VEHICLE LOAD
DOOR LATCH - BAR LOCK

ALUMINUM
DOOR - ENTRANCE

110 SERIES - 36" X 78" - RIGHT HINGE - FLUSH LOCK
RAMP DOOR FLOORING - REAR

ENGINEERED SUBFLOOR - 3/4"
TRANSITION FLAP

ENGINEERED SUBFLOOR - 3/4" - 15"L - 8.5'W

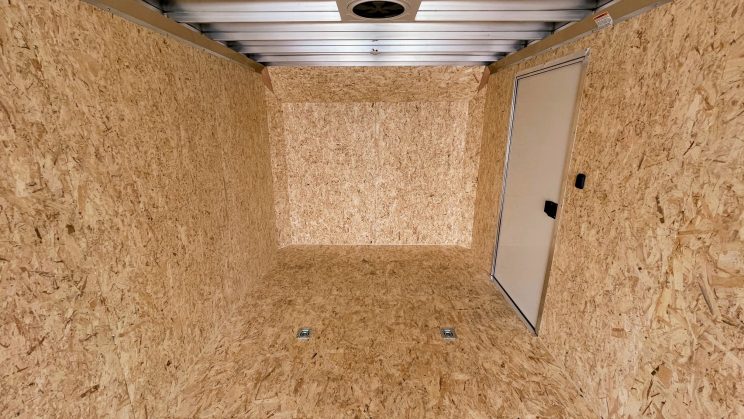

INTERIOR CEILING

OPEN STUD

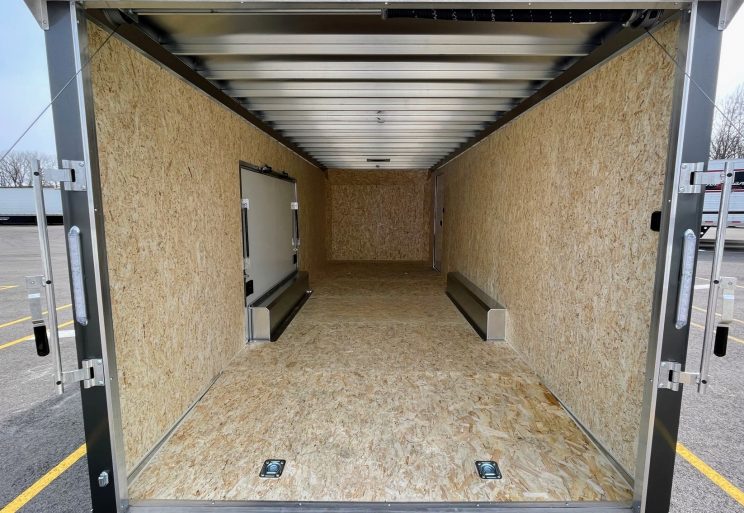

INTERIOR WALLS

ENGINEERED WALLS - 3/8"
FLOORING

ENGINEERED SUBFLOOR - 3/4"
D-RINGS

5000# - RECESSED
LIGHT - TAILLIGHT

LED - 12V
LIGHT - DOME

LED - 12V - NON-RECESSED
SWITCH

WALL - 12V
WINCH PLATE - UNDER FLOOR

FOR FUTURE MOUNTING

PACKAGES

PACKAGE - EXTERIOR
INCLUDES: PERIMETER SKIRTING WITH REVERSE BEAVERTAIL
INCLUDES: 4" UPPER AND 4" LOWER RUB RAIL
INCLUDES: REAR SPOILER WITH 3 LIGHTS
INCLUDES: RADIAL ALUMINUM WHEELS

OPTIONS

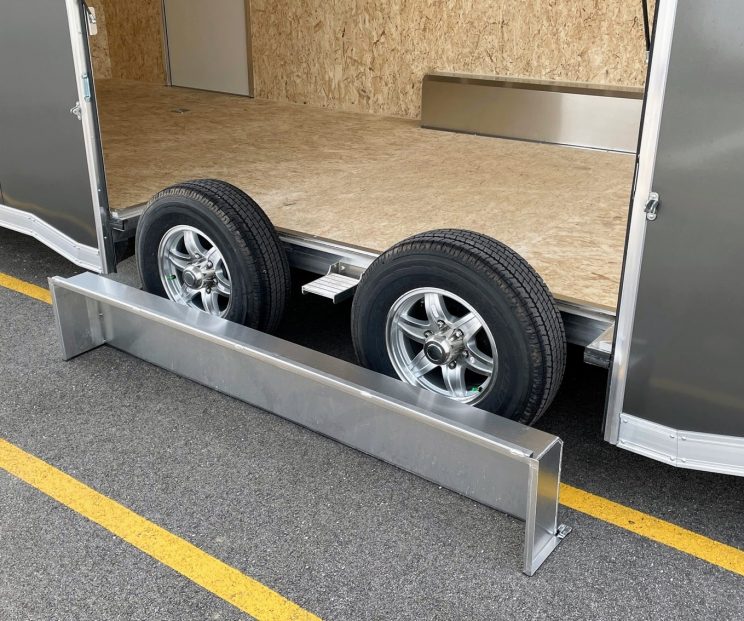

DOOR - ESCAPE - PREMIUM - 88W X 66H
ALUMINUM STEP
ONE PIECE REMOVABLE INTERIOR WHEEL WELL
EXTERIOR FENDERETTES INTEGRATED INTO DOOR
(2) 140# GAS SHOCKS
(2) PROP RODS
