See details on this custom 40-foot Enclosed ATC Gooseneck Race Trailer, and request a quote using the form below! We’ll build one like this to fit your exact specifications. (You can see trailer specs below. Please just let us know if you have any questions.)
40ft ATC Gooseneck Race Trailer
Every MO Great Dane trailer can be built with the color, frame, generator, flooring, etc. that you choose: see a complete list of the many trailer options we offer. Looking for price tags? Just fill out our Quote Request Form and we’ll send a quote your way.
TRAILER SPECIFICATIONS
| QSTAG8540+0-2T7.0K 1 ea STD |
| AXLE – 7000# – TORSION – EZ LUBE HUBS – ELECTRIC BRAKES |
| GROUND CLEARANCE: STANDARD (APPROX. 14.25″ – NO LOAD) |
| 2 ea STD |
| AXLE SPACING – SPREAD AXLE 1 ea STD |
| ALL TUBE CONSTRUCTION 40 ft STD |
| COUPLER – GOOSENECK – 2-5/16″ – 25,000# 1 ea STD |
| CROSS MEMBERS – FLOOR – 16″ O/C 40 ft STD |
| CROSS MEMBERS – ROOF – 16″ O/C – 1″ X 3″ 40 ft STD |
| CROSS MEMBERS – WALL – CS – 16″ O/C – 1″ X 1.5″ 40 ft STD |
| CROSS MEMBERS – WALL – RS – 16″ O/C – 1″ X 1.5″ 40 ft STD |
| FRAME – 8″ 40 ft STD |
| FRAME – FULL PERIMETER – ALUMINUM 40 ft STD |
| FRAME PROTECTION – SKID PLATES 1 pr STD |
| FRONT DESIGN – FLAT 1 ea STD |
| JACK – GOOSENECK – MANUAL – SINGLE SPEED 1 pr STD |
| TRUCK PLUG – 7 WAY 1 ea STD |
| EXTERIOR FASTENER – SCREWLESS 40 ft STD |
| EXTERIOR ALUMINUM THICKNESS – .030 40 ft STD |
| ENCLOSED FRONT – ATP – WITH ACCESS PANEL 1 ea STD |
| ROOF – ONE PIECE – ALUMINUM 40 ft STD |
| DOT TAPE 40 ft STD |
| WHEEL BOX – SMOOTH AL 2 ea STD |
| LIGHT – CLEARANCE – LED – 12V – AMBER – LOWER 4 ea STD |
| LIGHT – CLEARANCE – LED – 12V – AMBER – UPPER 6 ea STD |
| LIGHT – CLEARANCE – LED – 12V – RED – LOWER 2 ea STD |
| LIGHT – CLEARANCE – LED – 12V – RED – UPPER 7 ea STD |
| LIGHT – TAILLIGHT – SLIMLINE – LED – 12V – RED 1 pr STD |
| PACKAGES |
| PACKAGE – CAR HAULER – CH 305 |
| Modification: Entrance Door Size Change |
| 1 ea OPT |
| FLOOR DESIGN – BEAVERTAIL 1 ea PKG |
| INTERIOR HEIGHT – 7.0′ 40 ft PKG |
| SKIRTING – PERIMETER SKIRTING WITH REVERSE BEAVERTAIL |
| Includes: Custom Wheelwell Skirt, Full Perimeter Skirting, Single Fenderette Over Each Wheel |
| 1 ea PKG |
| DOOR – ENTRANCE – 405 SERIES – 48″ X 78″ – FMVSS LOCK |
| RIGHT HINGE |
| 1 ea PKG |
| STEP – SLIDE IN/OUT – ALUMINUM – 48″ 1 ea PKG |
| DOOR – REAR RAMP – PREMIUM – CONTINUOUS ALUMINUM HINGE – 4000# RATED 1 ea PKG |
| RAMP DOOR EXTERIOR – REAR – COLOR MATCHED 1 ea PKG |
| TRANSITION FLAP – TPO – BLACK COIN – 16″L 1 ea PKG |
| RAMP DOOR FLOORING – REAR – TPO – BLACK COIN 1 ea PKG |
| DOOR HARDWARE – LATCH – PADDLE – STAINLESS STEEL 1 pr PKG |
| TRIM – VERTICALS – FRONT & TOP RADIUS – STAINLESS STEEL WITH CAST CORNERS – POLISHED 1 ea PKG |
| TRIM – HEADER – REAR – STAINLESS STEEL 1 ea PKG |
| TRIM – VERTICALS – REAR – STAINLESS STEEL 1 ea PKG |
| TRIM – RUB RAIL – LOWER – ALUMINUM – 7″ 40 ft PKG |
| TRIM – RUB RAIL – UPPER – ALUMINUM – 4″ 40 ft PKG |
| FENDERETTES – AL – POLISHED 4 ea PKG |
| TIRE/WHEEL – ST235/85R16/LRG – RADIAL ON ALUMINUM – W/STAINLESS STEEL LUGNUTS 4 ea PKG |
| FLOORING – TPO – BLACK COIN 32 ft PKG |
| FLOORING – CARPET – GREY |
| LOCATION: BUNK AREA |
| 8 ft PKG |
| INTERIOR WALLS – SCREWLESS ALUMINUM |
| Wall Color: Polar White (Standard) |
| 40 ft PKG |
| INTERIOR CEILING – SCREWLESS ALUMINUM |
| Cove Color: Black |
| Ceiling Color: Polar White (Standard) |
| Spring Box Color: Black |
| 40 ft PKG |
| D-RINGS – 5000# – RECESSED 4 ea PKG |
| CABINET CONFIGURATION – G-100″W – #02 |
| CABINET – ALUMINUM – LOWER – STRAIGHT – 96″W |
| INSULATED GENERATOR COMPARTMENT W/ GALVANIZED LINER |
| CABINET – ALUMINUM – UPPER – STRAIGHT – 96″W – W/ RADIUS LOWER EDGE – TOP HINGED DOORS AND |
| GAS SHOCKS |
| Cabinet Color: Black |
| 1 ea PKG |
| BREAKER BOX – 50 AMP – 60 AMP CONVERTER – 12V FUSE PANEL – INTELI-POWER UNIT 1 ea PKG |
| POWER INLET – MOTORBASE – 50A – W/ SHORE CORD – 25′ 1 ea PKG |
| BATTERY – 12V AGM (930 CA, 775 CCA) |
| USED FOR: CH305 PACKAGE |
| 1 ea PKG |
| SWITCH – POWER CUT-OFF – MANUAL – 12V 1 ea PKG |

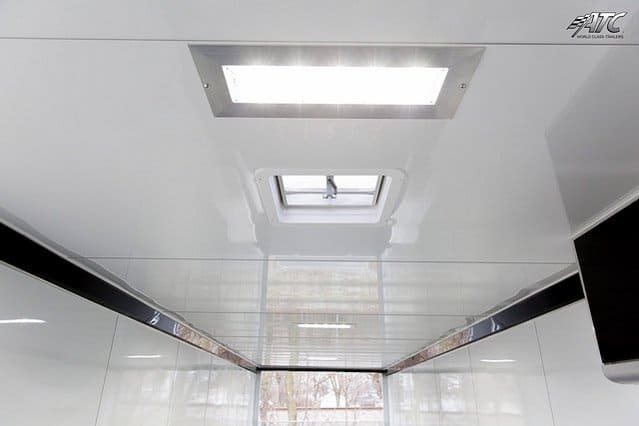

| LIGHT – RECTANGULAR – LED – 18″ – 12V – RECESSED – W/ TRIM RING 6 ea PKG |
| SWITCH – WALL – 3 WAY – 12V 1 pr PKG |
| USED FOR: LIGHT – RECTANGULAR – LED – 18″ – 12V – RECESSED – W/ TRIM RING |
| LIGHT – SCENE – LED – HIGH OUTPUT – 12V – NON RECESSED – 7″ X 3″ 2 ea PKG |
| SWITCH – WALL – 12V |
| Used For: Exterior Scene Lights |
| 1 ea PKG |
| A/C PREP – BRACE & WIRE 1 ea PKG |
| RECEPT – INTERIOR – 120V – 15A |
| GFCI PROTECTED WHERE REQUIRED BY CODE |
| 3 ea PKG |
| RECEPT – EXTERIOR – 120V – 15A – GFI PROTECTED 1 ea PKG |
| LIGHT – TAILLIGHT – SLIMLINE – LED – 12V – RED 1 pr PKG |
| FRONT DESIGN – FLAT 1 ea STD |
| OPTIONS |
| EXTERIOR ALUMINUM – STANDARD COLOR |
| Color: Select Color |
| 40 ft OPT |
| VENT – ROOF – MANUAL – 14″ 1 ea OPT |
| DOOR – GENERATOR – 405 SERIES – 36″ X 36″ |
| TOP HINGE |
| 1 ea OPT |
| SWITCH – RELAY – 12V – 30A 1 ea OPT |
